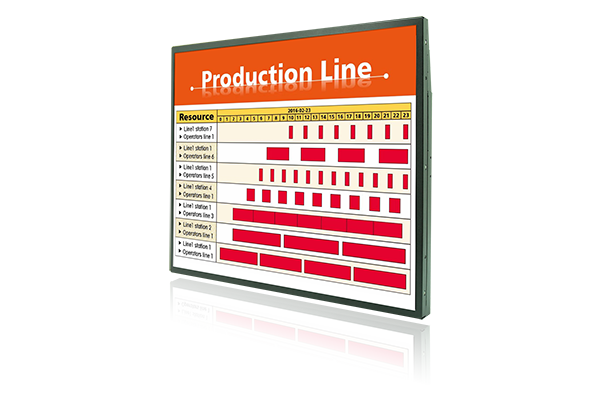

Durapixel 1968-U 19 Inch Wide Temperature LCD Screen

Durapixel 1968-U 19 Inch Wide Temperature LCD Screen

19" TFT LCD, 1600 nits LED backlight, 1280x1024, -30°C~85°C

Manufacturer:

Description

Overview

19 Inch 1600 Nits LCD Display

DLD1968 TFT LCD industrial panel mount monitor, built-in 1600 nits high brightness for sunlight readable display and wide temperature range (-30°C~85°C). It offers the best visibility, performance and cost effective value. The high level of brightness together with the optimal contrast ratio renders high quality images and enhances legibility. With its fast response time and LED backlight technology, the monitor brings remarkable display quality and durability for your applications. Suitable for marine, military, medical, transportation, and industrial application.

Advantages



  • 19" sunlight readable, high brightness (1,600 nits)
  • Resolutions: 1280 x 1024
  • Aspect ratio of 5:4
  • High contrast ratio (1000:1)
  • Wide temperature (-30°C~85°C)
  • Low power consumption
  • BL MTBF: 70,000 hours

    •

    Specifications

    Model DLF1968-U DLH1968-U DLO1968-U DLD1968-U

    Description 19" TFT LCD, 1600 nits LED backlight, 1280x1024 19" TFT LCD, 1600 nits LED backlight, 1280x1024 19" TFT LCD, 1600 nits LED backlight, 1280x1024 19" TFT LCD, 1600 nits LED backlight, 1280x1024
    Screen size 19" 19" 19" 19"
    Display area (mm) 376.3(H) x 301.06(V) 376.3(H) x 301.06(V) 376.3(H) x 301.06(V) 376.3(H) x 301.06(V)
    Brightness 1600 cd/m² 1600 cd/m² 1600 cd/m² 1600 cd/m²
    Resolution 1280x1024 1280x1024 1280x1024 1280x1024
    Aspect ratio 5:04 5:04 5:04 5:04
    Contrast ratio 1000:01:00 1000:01:00 1000:01:00 1000:01:00
    Pixel pitch (mm) 0.294 (H) x 0.294 (V) 0.294 (H) x 0.294 (V) 0.294 (H) x 0.294 (V) 0.294 (H) x 0.294 (V)
    Pixel per inch (PPI) 86 86 86 86
    Viewing angle 170° (H), 160° (V) 170° (H), 160° (V) 170° (H), 160° (V) 170° (H), 160° (V)
    Color saturation (NTSC) 80% 80% 80% 80%
    Display colors 16.7M 16.7M 16.7M 16.7M
    Response time (Typical) 10ms 10ms 10ms 10ms
    Video interface LVDS VGA, DVI-D VGA, DVI-D VGA, DVI-D
    Input power   DC 12V DC 12V DC 12V
    Power consumption 40w 43w 43w 43w
    Dimensions (mm) 396x324x14.5 396x324x14.5 429.2x326x36.4 396x326x35.9
    Bezel size (U/B/L/R) 9.5/9.5/7.9/7.9 9.5/9.5/7.9/7.9 11/11/24.4/24.4 10.5/10.5/7.9/7.9
    Weight (Net) 2.4kg 2.45kg 3.2kg 3kg
    Mounting     VESA 75x75 VESA 75x75
    OSD key   4 keys (Power switch, menu, +, -) 4 keys (Power switch, menu, +, -) 4 keys (Power switch, menu, +, -)
    OSD control   Brightness, color, contrast, H/V position… etc Brightness, color, contrast, H/V position… etc Brightness, color, contrast, H/V position… etc
    Operating temperature -30°C ~ +85°C -30°C ~ +85°C -30°C ~ +85°C -30°C ~ +85°C
    Storage temperature -30°C ~ +85°C -30°C ~ +85°C -30°C ~ +85°C -30°C ~ +85°C
    Product approval     CE, FCC CE, FCC
