Vehicle GPS Repeater

Overview

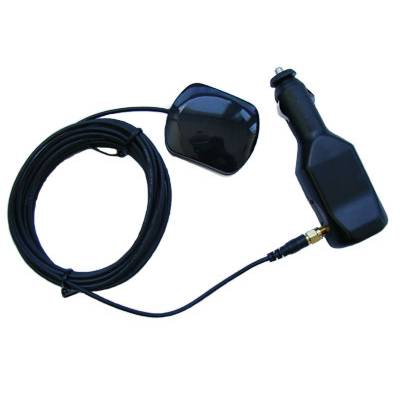

GPS Repeater Kit for Vehicles

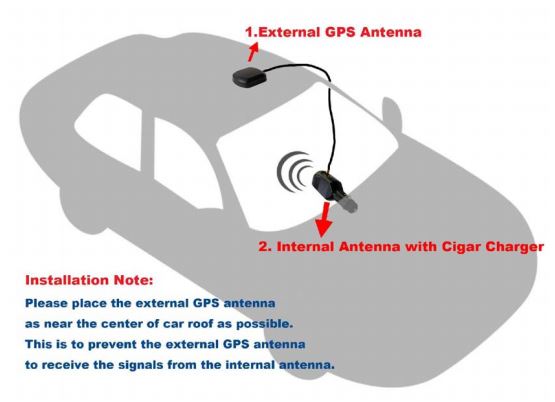

GPS L1 band signal repeating unit with dual antennas to re-transmit real-time GPS satellite outdoor receptions to an indoor environment. The internal repeating antenna allows multi GPS receiver users to perform On-The-Fly normal receiver performance within a closed environment, while the main GPS antenna is mounted externally.

System Description

The system kits are designed to operate as whole, it includes a high gain external GPS antenna, precisely calibrated amplifier circuit with Helix type indoor antenna and a power supply regulator built-in.

Applications / Coverage

The re-radiating indoor circuit with Helix type antenna can support any type of GPS receivers that use the L1 band 1575.42MHz frequency.  It can provide good signal reception to a distance of 1 to 2 meters, depending on indoor noise environment. Typically these kits are used in vehicles, primarily to improve the GPS signal in a car or truck.

Advantages

• 1~2 meter GPS Re-Radiating distance
• Low power consumption: 30 mA
• Magnetic roof antenna
• Temperature: -30°C to +85°C
