Description
Overview

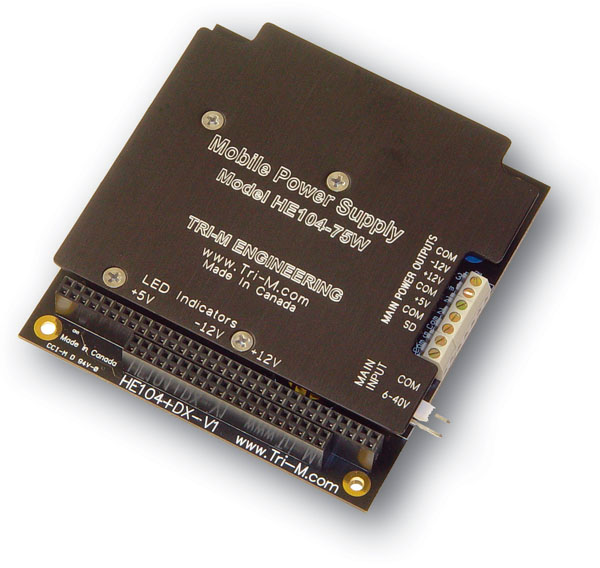

75 Watt High Efficiency PC104 Power Supply
For applications requiring a DC-DC PC104 power converter that supplies up to 75W of power, Tri-M offers the HE104-75W. It is ideal for use on 12VDC and 24VDC mobile applications where power from a DC source (input) needs to be converted (output) to match the applications power requirements - generally an embedded computer.
Efficiency of the HE is over 90% - the higher efficiency means less heat is generated - and it is designed to operate in extended temperature applications where temperatures can be between -40°C and +85°C.
Input voltage spikes that go beyond the input voltage window (9VDC to 40VDC) are managed through transient suppressors that restrict the input voltage, while maintaining normal output power operation.
The HE104-75W is designed to minimize any generated noise or interference, allowing it to be used for airborne or ground vehicles that encounter EMI or RFI.
Advantages
- High efficiency
- Extended temperature operation
- Rugged design
- Transient supression
- Clean and filtered power for the PC/104 bus
Specifications
Electrical Specifications
- 5V output 15A
- 12V output 3A
- -12V output 0.5A
Input voltage range
- 6V to 40V DC
Performance Characteristics
- Load Regulation (5V output) < 60mV
- Line Regulation (5V output) 40mV
- Output temp. drift (5V output) < 40mV
- Switching Frequency 312kHz
- Output Ripple (5V output) < 20mV
- Conducted Susceptibility (5V output) > 57db
- Efficiency Up to 90%
- Temperature range -40° to 85°C
Environmental & Mechanical
- Temperature Range* -40° to 85°C
- Form Factor PC/104
- Dimensions (excluding PC/104 pins) 3.55”W x 3.75”L x 0.6”H
- Weight 6.08oz / 172.37g
Downloads
| File | Type | Description |
| he104-75w_spec.pdf | Spec Sheet | HE104-75W Spec Sheet |
| he104-75w_man.pdf | User Guide | HE104-75W Manual |
Ordering Info
| Part Number | Description |
| HE104-75W-N-PBF | PC/104, In 6-40VDC, Out 75 Watt, +5V@15A, +12V@3A, -12V@500mA, (-40 to +85°C), No Bus |
| HE104-75W-PBF | PC/104, In 6-40VDC, Out 75 Watt, +5V@15A, +12V@3A, -12V@500mA, (-40 to +85°C), ISA Bus |
| HE105+75W-PBF | PC/104, In 6-40VDC, Out 75 Watt, +5V@15A, +12V@3A, -12V@500mA, (-40 to +85°C), ISA Bus, PCI Bus |
| Accessories and Options | |
| CH | Humiseal conformal coating and epoxy |
| CON-HE104-75W-KIT | Replacement Connector Kit for HE104-75W power supplies |
| CS | Silicon conformal coating and epoxy |
| CU | Urethane conformal coating and epoxy |
| FON | Forced On Option |
| NS | Non-Stack Through Bus, modifies N |
