Description
Overview

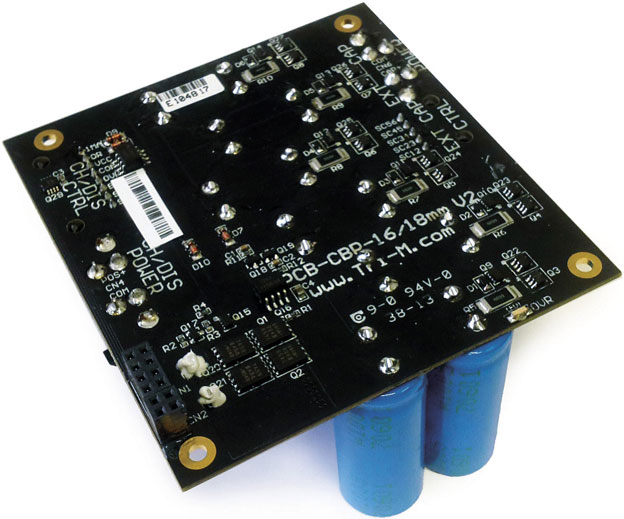

Ultra Capacitor Backup for HESC & HPSC
TBP4xxx modules are extended temperature, maintenance free, high cycling backup energy modules that when combined with a Tri-M HESC or HPSC smart charging power solution creates a complete uninterruptable power system (UPS) in a PC/104 footprint. The TBP4xxx designed for hostile environments of extreme temperatures and vibration. This rugged backup energy module is ideal for applications that have either a large number of discharge cycles or where a "maintenance free" solution is required such as remote and hard to access locations.
TBP4xxx Modules are available in 500, 1000, 2000 and 4000 joules and mate directly to the bottom of HESC or HPSC power supplies.
Key Specifications
- Fully charged in less than a minute
- 500,000 charge cycles
- Deep discharge immune
- Extreme temperature operation
- High altitude capable (info available on request)
- Designed for high vibration and shock environments
- PC/104 size footprint
- Cable free mating with HESC & HPSC
Advantages
- Designed to MIL Standards
- Prevents loss of data or corruption due to reliable system backup power
- Reduced downtime due to maintenance-free operation
- High Density PC/104 footprint
- Improved reliability due to cable free integration of HESC & HPSC
Applications
- Military & Civil Vehicles
- Aerospace & Defence
- Industrial Automation
- Telecommunications
- Undersea & Marine
Specifications
| Detail | Units | Capacitive Backup Power Module | ||||
| TBP4K50 | TBP41K0 | TBP42K0 | TBP44K0 | |||
| Backup energy (see note 1) | joules | 500 | 1000 | 2000 | 4000 | |
| Maximum voltage (see note 2) | volts | 13 | ||||
| Temperature range | °C | -45 to 85 | ||||
| °F | -40 to 185 | |||||
| Size (length and width) | inch | 3.55 x 3.775 | ||||
| mm | 90 x 96 | |||||
| Height (in addition to the standard 0.662" PC/104 card on the PC/104 stack) |
inch | 0 | 1.83 | 1.83 | 2.42 | |
| mm | 0 | 46.5 | 46.5 | 61.5 | ||
| Recommended maximum load wattage | watts | 40 | 40 | 80 | 80 | |
| Weight | ounces | 4.2 | 6.7 | 11.6 | 17.3 | |
| grams | 120 | 190 | 330 | 490 | ||
| Holdup time for 5 watt load | seconds | 100 | 200 | 400 | 800 | |
| Holdup time for 10 watt load | seconds | 50 | 100 | 200 | 400 | |
| Holdup time for 25 watt load | seconds | 20 | 40 | 80 | 160 | |
| Holdup time for 50 watt load | seconds | not recommended | 40 | 80 | ||
|
Note 1: The module backup energy is based on a cutoff of 7V. |
||||||
Downloads
| File | Type | Description |
| TBP4xxx-Spec-Sheet.pdf | Spec Sheet |
TBP4xxx Spec Sheet |
| TBP4xxx-User-Guide.pdf | User Guide |
TBP4xxx User Guide |
Ordering Info
| Part Number | Description |
| TBP4xxx[-Cy]-PBF | where “xxx” is the joules in three digit notation |
| "xxx" = K50 | 500 joules (TBP4K50-PBF) |
| "xxx" = 1K0 | 1000 joules (TBP41K0-PBF) |
| "xxx" = 2K0 | 2000 joules (TBP42K0-PBF) |
| "xxx" = 4K0 | 4000 joules (TBP44K0-PBF) |
| Accessories and Options | |
| where [-Cy] is the optional conformal coating selection | |
| -CS | Silicon conformal coating |
| -CU | Urethane conformal coating |
| -CH | HumiSeal conformal coating |
| Ex: TBP4K50-CU-PBF; 500 joules backup module with urethane coating. | |
