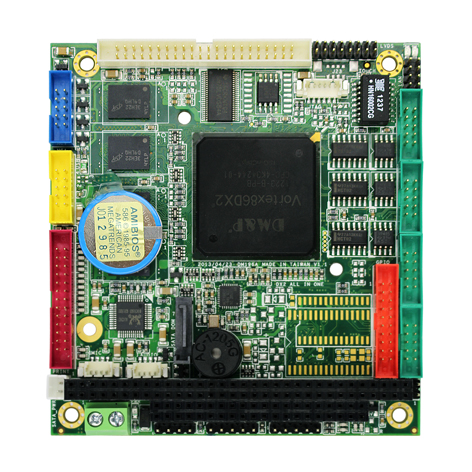

VDX2-6554

1GB/4S/2USB/VGA/LCD/LVDS/LAN/AUDIO/GPIO/PWMx12

Description



Overview

Advantages

  • DM&P SoC CPU Vortex86DX2- 800MHz
  • PC/104 standard compliant
  • 512MB/1GB DDR2 onboard
  • Watchdog Timer, software programmable from 30.5 µsec. to 512 sec.
  • Integrated 2D VGA chip, share system memory 16MB/32MB
  • Integrated ALC 262 HD Audio
  • Integrated 10/100Mbps Ethernet
  • Onboard 4MB SPI Flash Disk
  • Support SATA interface
  • Operation Temperature: -20°C ~ +70°C, -40°C ~ +85°C (Optional)

    •

    Ordering Info

    Part Number Description
    VDX2-6554-1G Vortex86DX2 PC/104 CPU Module with 1GB DDR2
    VDX2-6554-512 Vortex86DX2 PC/104 CPU Module with 512MB DDR2



    Downloads

     File Type Description
    VDX2-6554_datasheet.pdf  Spec sheet Spec sheet for VDX2-6554 modules
    VDX2-6554_UM_v1r4A.pdf User manual User manual for VDX2-6554 modules
