Spanpixel 2925 double sided Digital Signage LCD Display

Spanpixel 2925-E (double sided) Sunlight Viewable LCD Signage

Aspect ratio 16:6, 1366x512 resolutions, 1000 nits, high brightness LCD, double sided lcd sign

Manufacturer:

Description

Overview

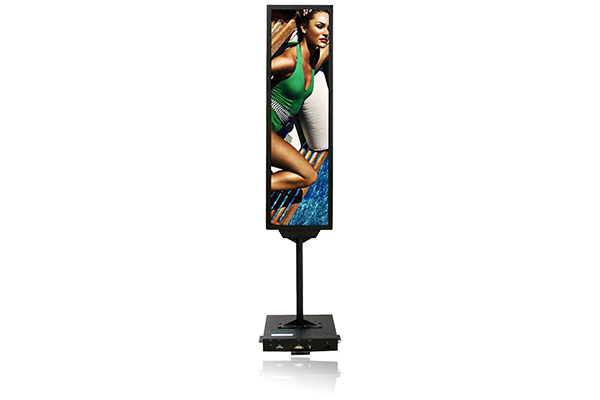

29 Inch Double Sided Sunlight Viewable LCD Sign

SSC2925 is an innovative ultra-wide, sunlight readable, slim, LED backlight Double Sided LCD display.  It provides a double sided LCD sign for applications in digital signage, public transportation, exhibition hall, department store, and industrial applications. Added content can be played back by optional smart TV dongle, with optional swivel base, SSC2925 can rotate 360∘ automatically.

Advantages

  • 29.3" resizing, double-sided LCD sign
  • Stretched display (aspect ratio of 16:6)
  • Sunlight readable, high brightness (1,000 nits)
  • Resolutions: 1366 x 512
  • High contrast ratio (2500:1)
  • Wide viewing angle of 176° (H), 176° (V)
  • BL MTBF: 70,000 hours

    •

    Specifications

    Model SSC2925-E

    Description 29.3" two resizing LCD, 1000 nits LED backlight, 1366x512
    Screen size 29.3"
    Display area (mm) 697.68(H) x 261.5(V)
    Brightness 1000 cd/m²
    Resolution 1366x512
    Aspect ratio 16:06
    Contrast ratio 2500:1
    Pixel pitch (mm) 0.51075 (H) x 0.51075 (V)
    Pixel per inch (PPI) 50
    Viewing angle 176° (H), 176° (V)
    Color saturation (NTSC) 80%
    Display colors 16.7M
    Response time (Typical) 6.5ms
    Video interface VGA, DVI-D, HDMI
    Input power AC 100~240V
    Power consumption 108w
    Dimensions (mm) 1254.9x368x37
    Bezel size (U/B/L/R) 25.7/25.7/23.1/23.1
    Weight (Net) 17kg
    Mounting VESA 346x65
    OSD key 4 keys (Power switch, menu, +, -)
    OSD control Brightness, color, contrast, H/V position… etc
    Operating temperature 0°C ~ +50°C
    Storage temperature -20°C ~ +60°C
    Product approval CE, FCC

    Downloads

    File Type Description
    DS_SSC2925_V1_20140625_Portrait.pdf Spec Sheet Spanpixel SSC2925-E Spec Sheet

    Ordering Info

    Part Number Description
    SSC2925‐ENN‐G01 29.3"*2,1000nits,1366*512,LID29A,AD2662GDHMA,speaker/2W*2,OSD, AC100~240V input,V1
    Optional Accessories
    810618301010 CABLE.POWER.AC.1830mm.(US Type).3PIN PLUG TO SOCKET.SVT(SPT-2 )18AWG 3C BLACK.P
    810618301090 CABLE,POWER,AC,1830mm Europe type
    810618301050 CABLE.POWER.AC.1830mm UK type
    810618301170 CABLE.POWER,AC,1830mm Australia type
    810618301030 CABLE.POWER.AC.1830mm Japan type
    SSC‐001 Swivel base for SSC Double Side LCD rotate 360∘automatically, AC100~240V input,V1
