Durapixel 1015 10 Inch Rugged TFT LCD Screen

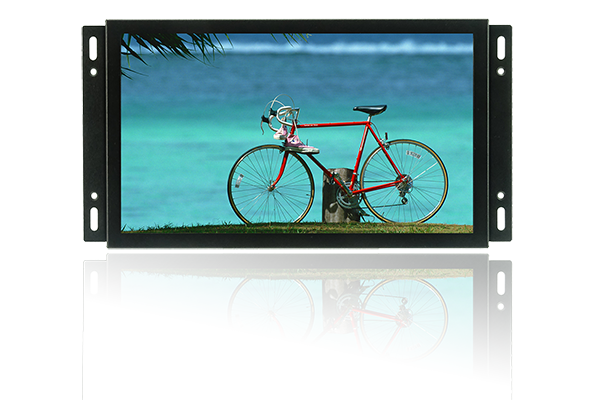

Durapixel 1015-V: 10 Inch Rugged TFT LCD Screen

10.1" TFT LCD, 1000 nits LED backlight, 1024x600

Manufacturer:

Description

10 Inch Rugged TFT LCD Screen for Industrial Applications

DLD1015-V is a 10.1” TFT LCD panel, with 1000 nits high brightness for sunlight readable LCD display, high transmittance color filter, high transmission polarizing plates, and Low Power Consumption.  Suitable for kiosk, advertising, POS, marine, transportation, gaming, studio display, gas pumps.

Advantages

  • 10.1" sunlight readable, high brightness (1,000 nits)
  • Resolutions: 1024 x 600
  • Industry leading LED backlight
  • Aspect ratio of 16:9
  • Wide temperature (-20°C~70°C)
  • Low power consumption BL MTBF: 70,000 hours
    • Model DLF1015-v DLH1015-V DLO1015-V DLD1015-V

    Description 10.1" TFT LCD, 1000 nits LED backlight, 1024x600 10.1" TFT LCD, 1000 nits LED backlight, 1024x600 10.1" TFT LCD, 1000 nits LED backlight, 1024x600 10.1" TFT LCD, 1000 nits LED backlight, 1024x600
    Screen size 10.1" 10.1"   10.1"
    Display area (mm) 222.7(H) x 125.3(V) 222.7(H) x 125.3(V) 222.7(H) x 125.3(V) 222.7(H) x 125.3(V)
    Brightness 1000 cd/m² 1000 cd/m² 1000 cd/m² 1000 cd/m²
    Resolution 1024x600 1024x600 1024x600 1024x600
    Aspect ratio 16:09 16:09 16:09 16:09
    Contrast ratio 900:01:00 900:01:00 900:01:00 900:01:00
    Pixel pitch (mm) 0.2175 (H) x 0.2088 (V) 0.2175 (H) x 0.2088 (V) 0.2175 (H) x 0.2088 (V) 0.2175 (H) x 0.2088 (V)
    Pixel per inch (PPI) 117 117 117 117
    Viewing angle 160° (H), 160° (V) 160° (H), 160° (V) 160° (H), 160° (V) 160° (H), 160° (V)
    Color saturation (NTSC) 49% 49% 49% 49%
    Display colors 16.7M 16.7M 16.7M 16.7M
    Response time (Typical) 16ms 16ms 16ms 16ms
    Video interface LVDS VGA VGA VGA
    Input power   DC 12V DC 12V DC 12V
    Power consumption 4.5w 6.36w 6.36w 6.36w
    Dimensions (mm) 235x143x7.54 235x143x7.54 274x148.2x37 244x148.2x36.5
    Bezel size (U/B/L/R) 7.36/7.36/3.74/5.54 7.36/7.36/3.74/5.54 10.95/10.95/10.2/10.2 10.95/10.95/10.2/10.2
    Weight (Net) 0.3kg 0.3kg 0.8kg 0.7kg
    Mounting       VESA 50x50
    OSD key   4 keys (Power switch, menu, +, -) 4 keys (Power switch, menu, +, -) 4 keys (Power switch, menu, +, -)
    OSD control   Brightness, color, contrast, H/V position… etc Brightness, color, contrast, H/V position… etc Brightness, color, contrast, H/V position… etc
    Operating temperature -20°C ~ +70°C -20°C ~ +70°C -20°C ~ +70°C -20°C ~ +70°C
    Storage temperature -30°C ~ +80°C -30°C ~ +80°C -30°C ~ +80°C -30°C ~ +80°C
    Product approval     CE, FCC CE, FCC
