Description
Overview

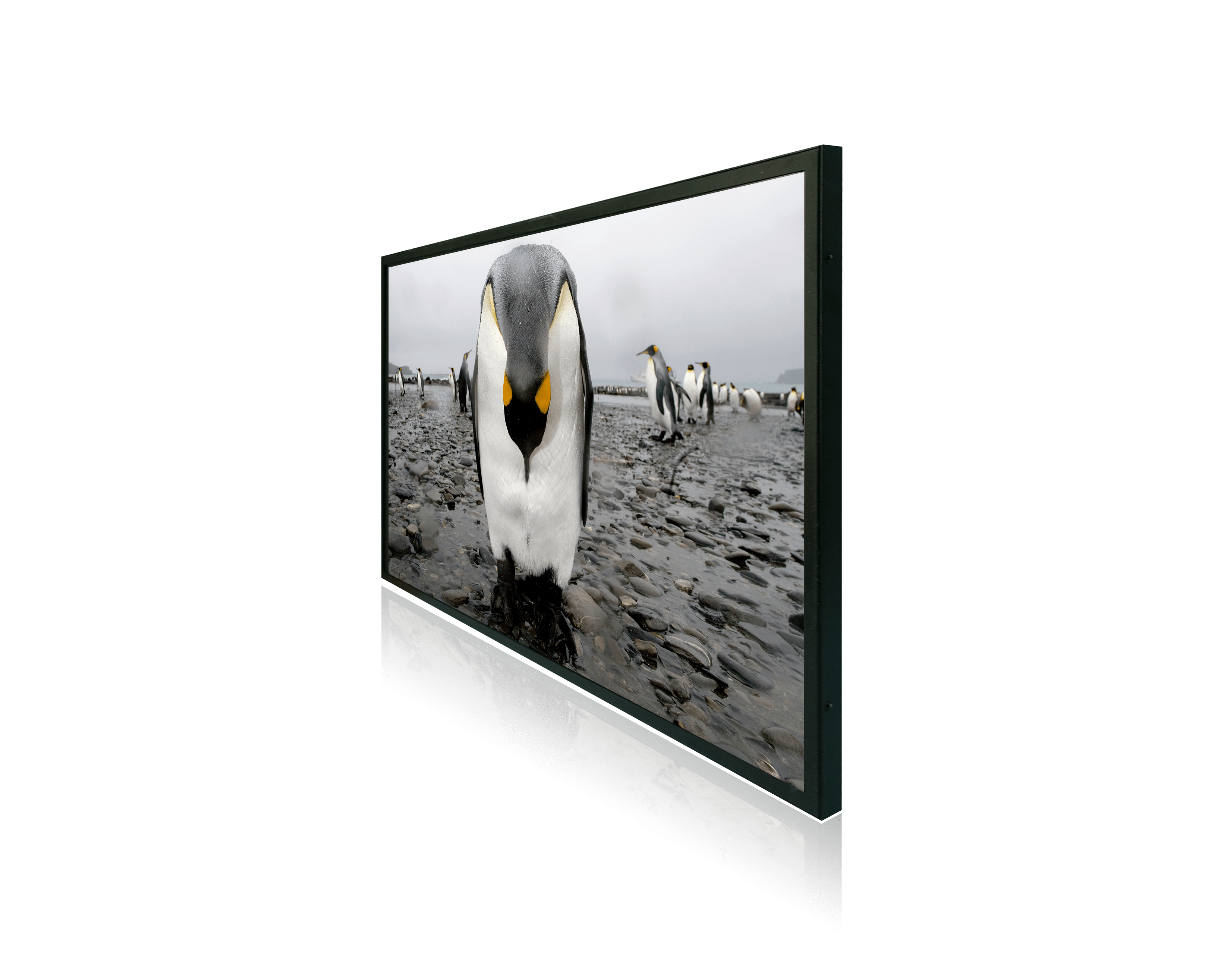

27 Inch Extremely Bright LCD Display
The DLD2708-B is a 27 inch industrial grade sunlight readable LCD, with extremely high brightness 1600 nits, it produce sharp images, crisp text and true colors. The Durapixel LED backlight technology ensures high reliability and low power consumption, suitable for outdoor application, kiosk, factory automation, military, transportation and gaming application.
Advantages
Specifications
| Model | DLF2708-B | DLH2708-B | DLD2708-B |
| Description | 27" TFT LCD, 1600 nits LED backlight, 1920x1080 | 27" TFT LCD, 1600 nits LED backlight, 1920x1080 | 27" TFT LCD, 1600 nits LED backlight, 1920x1080 |
| Screen size | 27" | 27" | 27" |
| Display area (mm) | 597.8(H) x 336.3(V) | 597.8(H) x 336.3(V) | 597.8(H) x 336.3(V) |
| Brightness | 1600 cd/m² | 1600 cd/m² | 1600 cd/m² |
| Resolution | 1920x1080 | 1920x1080 | 1920x1080 |
| Aspect ratio | 16:09 | 16:09 | 16:09 |
| Contrast ratio | 1000:01:00 | 1000:01:00 | 1000:01:00 |
| Pixel pitch (mm) | 0.3114 (H) x 0.3114 (V) | 0.3114 (H) x 0.3114 (V) | 0.3114 (H) x 0.3114 (V) |
| Pixel per inch (PPI) | 81 | 81 | 81 |
| Viewing angle | 178° (H), 178° (V) | 178° (H), 178° (V) | 178° (H), 178° (V) |
| Color saturation (NTSC) | 81% | 81% | 81% |
| Display colors | 16.7M | 16.7M | 16.7M |
| Response time (Typical) | 14ms | 14ms | 14ms |
| Video interface | LVDS | VGA, DVI-I, DP | VGA, DVI-I, DP |
| Input power | DC 12V | DC 12V | |
| Power consumption | 57w | 62w | 62w |
| Dimensions (mm) | 622x360.5x13.7 | 622x360.5x13.7 | 625x363.5x45.1 |
| Bezel size (U/B/L/R) | 10/10/10/10 | 10/10/10/10 | 11.5/11.5/11.5/11.5 |
| Weight (Net) | 2.8kg | 2.8kg | 6.2kg |
| Mounting | VESA 75x75,100x100 | ||
| OSD key | 4 keys (Power switch, menu, +, -) | 4 keys (Power switch, menu, +, -) | |
| OSD control | Brightness, color, contrast, H/V position… etc | Brightness, color, contrast, H/V position… etc | |
| Operating temperature | 0°C ~ +50°C | 0°C ~ +50°C | 0°C ~ +50°C |
| Storage temperature | -20°C ~ +60°C | -20°C ~ +60°C | -20°C ~ +60°C |
| Product approval | CE, FCC |
