Durapixel 5506-LNU

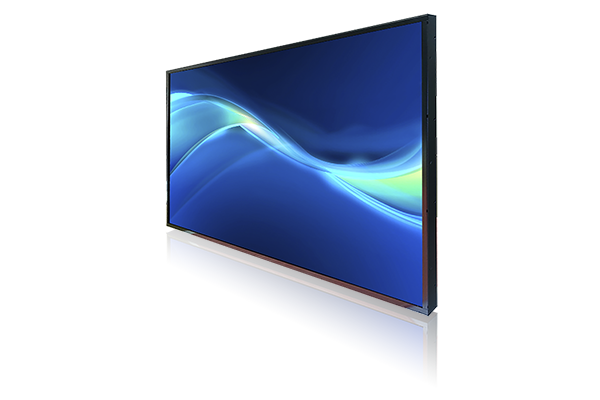

Durapixel 5506-LNU: 55 Inch Industrial 4K UHD 1200nits LCD Display

55” TFT LCD, LED Backlight 1200nits, UHD (3840x2160), 0°C ~ +50°C

Description

55 Inch Gaming LCD Display with MaxRGB

The DLD4300-L is a 43 inch industrial grade sunlight readable LCD display with very high brightness of 2500 nits.  It produce sharp images, crisp text and lifelike colors. The Durapixel LED backlight technology ensures high reliability and low power consumption, and is suitable for outdoor application, kiosk, factory automation, military, transportation, gaming and medical, application.

Advantages

  • 55" sunlight readable, high brightness (1,200 nits)
  • Resolutions: 3840 x 2160
  • Wide viewing angle of 178° (H), 178° (V)
  • High color contrast ratio (1200:1)
  • Low power consumption
  • BL MTBF: 100,000 hours

    • Model name DLH5506-LNU (no enclosure) DLD5506-LNU (with enclosure)
    Description 55” TFT LCD, LED Backlight 1200nits, UHD (3840x2160)
    55” TFT LCD, LED Backlight 1200nits, UHD (3840x2160)
    Size 55" 55"
    Display area (mm) 1209.6(H) x 680.4(V) 1209.6(H) x 680.4(V)
    Brightness 1200 cd/m² 1200 cd/m²
    Resolution 3840x2160 3840x2160
    Aspect ratio 16:9 16:9
    Contrast ratio 1200:1 1200:1
    Pixel pitch (mm) 0.315 (H) x 0.315 (V) 0.315 (H) x 0.315 (V)
    Pixel per inch (PPI) 80 80
    Viewing angle 178° (H), 178° (V) 178° (H), 178° (V)
    Color saturation (NTSC) 80% 80%
    Display colors 1.07G 1.07G
    Response time (Typical) 8ms 8ms
    Video interface VGA, DVI-D, HDMI, DP VGA, DVI-D, HDMI, DP
    Input power DC 12V DC 12V
    Power consumption 165w 165w
    Dimensions (mm) 1241 x 711 x 21.5 1242.6 x 713.6 x 74.3
    Bezel size (U/B/L/R) 14/14/14/14 15.3/15.3/15.3/15.3
    Weight (Net) 23kg 36kg
    Mounting - VESA 400x200, 400x300
    OSD key 5 keys (Power switch, menu, +, -) 5 keys (Power switch, menu, +, -)
    OSD control Brightness, color, contrast, H/V position… etc Brightness, color, contrast, H/V position… etc
    Operating temperature 0°C ~ +50°C 0°C ~ +50°C
    Storage temperature -20°C ~ +60°C -20°C ~ +60°C
    Product approval - CE, FCC
