Spanpixel 3685-I: Sunlight Readable LCD Signage

Aspect ratio 16:2.9, 1920x360 resolution, 1000 nits, high brightness LCD display for signage applications

Manufacturer:

Description

Overview

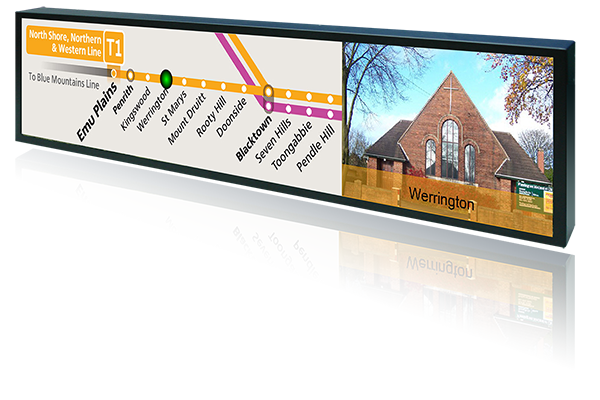

29 Inch Outdoor LCD Digital Display

Litemax's SSD3665-I is a 36.8” multi-color TFT-LCD display with a stretched display aspect ratio 16:2.9 and high resolution of 1920 x 358. Part of Litemax's Spanpixel series, SSD3685-I has a high brightness of 1000 nits and energy-efficient LED backlight. SSD3685-I is perfect for vertical markets including digital signage, public transportation displays, exhibition halls, department stores, vending machines and many more.

Advantages

36.8" resizing LCD screen

Stretched display (aspect ratio of 16:2.9)

Sunlight readable, high brightness (1,000 nits)

Resolutions: 1920 x 360

Wide view angle of 178° (H), 178° (V)

BL MTBF: 100,000 hours

Specifications

Model

SSF3685-I

SSH3685-I

SSD3685-I

Description	36.8" Resizing LCD, 1000 nits LED backlight, 1920x360	36.8" Resizing LCD, 1000 nits LED backlight, 1920x360	36.8" Resizing LCD, 1000 nits LED backlight, 1920x360
Screen size	36.8"	36.8"	36.8"
Display area (mm)	919.3(H) x 172.3(V)	919.3(H) x 172.3(V)	919.3(H) x 172.3(V)
Brightness	1000 cd/m²	1000 cd/m²	1000 cd/m²
Resolution	1920x360	1920x360	1920x360
Aspect ratio	16:03	16:03	16:03
Contrast ratio	8500:01:00	8500:01:00	8500:01:00
Pixel pitch (mm)	0.4788 (H) x 0.4788 (V)	0.4788 (H) x 0.4788 (V)	0.4788 (H) x 0.4788 (V)
Pixel per inch (PPI)	52	52	52
Viewing angle	178° (H), 178° (V)	178° (H), 178° (V)	178° (H), 178° (V)
Color saturation (NTSC)	80%	80%	80%
Display colors	16.7M	16.7M	16.7M
Response time (Typical)	9.5ms	9.5ms	9.5ms
Video interface	VGA, DVI-D	VGA, DVI-D, HDMI	VGA, DVI-D, HDMI
Input power		DC 12V	DC 12V
Power consumption	31W	36W	36W
Dimensions (mm)	960x207.3x16	960x207.3x16	TBD
Bezel size (U/B/L/R)	15.2/15.2/17.8/17.8	15.2/15.2/17.8/17.8	TBD
Weight (Net)	3.5kg	3.8kg	TBD
Mounting			TBD
OSD key		4 keys (Power switch, menu, +, -)	4 keys (Power switch, menu, +, -)
OSD control		Brightness, color, contrast, H/V position… etc	Brightness, color, contrast, H/V position… etc
Operating temperature	0°C ~ +50°C	0°C ~ +50°C	0°C ~ +50°C
Storage temperature	-20°C ~ +60°C	-20°C ~ +60°C	-20°C ~ +60°C
Product approval			CE, FCC

Downloads

File	Type	Description
DS_20SSD3685-I20_V1_20160630.pdf	Spec Sheet	Spanpixel SSD3685-I Spec Sheet
DS_20SSF_20SSH3685-I20_V1_20160630.pdf	Spec Sheet	Spanpixel SSF3685 & SSH3685 spec sheet

Ordering Info

Part Number	Description
SSD3685-INB-G01	36.6",1000nits,1920*358,LID36A,AD2662GDHM,O/B,DC12V,2in1,V1
SSF3685NN-A01	36.8”,1000nits,1920*290,LID36A,2IN1,V1
SSF3685NN-A02	36.8”,1000nits,1920*290,LID36B,2IN1,V1
SSH3685-INN-G01	36.8”,1000nits,1920*290,LID36A,AD2662GDHM,DC12V,2in1,V1
SSH3685-INN-G02	36.8”,1000nits,1920*290,LID36B,AD2662GDHM,DC12V,2in1,V1

Optional Accessories
810618301010	CABLE.POWER.AC.1830mm.(US Type).3PIN PLUG TO SOCKET.SVT(SPT-2 )18AWG 3C BLACK.P
810618301090	CABLE,POWER,AC,1830mm Europe type
810618301050	CABLE.POWER.AC.1830mm UK type
810618301170	CABLE.POWER,AC,1830mm Australia type
810618301030	CABLE.POWER.AC.1830mm Japan type
840612051210	ADAPTER,AC/DC,12V/5.4A,65W,Atech OEM A065112‐TDx.4P SLIDING CAP,P
