| SYSTEM |
| PROCESSOR |
Intel® N4200, (4C @ 2.50GHz CPU (Burst Mode), 750MHz GFX (Turbo), ~6W TDP)
Intel® N3350, (2C @ 2.40GHz CPU (Burst Mode), 650MHz GFX (Turbo), ~6W TDP) |
| CHIPSET |
Intergrate into SoC |
| MEMORY |
DDR3L 1333/1600/1867MHz SO-DIMM x 2, max. 8GB, non-ECC, un-buffered memory |
| GRAPHICS |
— |
| I/O CHIPSET |
F81866D |
| ETHERNET |
Realtek PCIe Gb L AN 8111G x 2 |
| AUDIO |
Realtek® ALC3236-CG |
| TPM |
Nuvoton NPCT650ABAYX TPM2.0 (option) |
| EXPANSION SLOT |
PCIe [x1] x 1
M.2 M key (22 x 42mm) x 1, for SATA
M.2 E Key (22 x 30mm) x 1, for PCIe |
| BIOS |
128Mbit Flash ROM x 1, AMI BIOS |
| H/W MONITOR |
Temperature Monitor on CPU/System, Voltage Monitor on Vcore/5V/12V, Fan
Monitor on CPU/Chassis |
| WATCHDOG TIMER |
1~255 steps by software program |
| SMART FAN CONTROL |
Chassis Fan x 1 (Fanless) |
| WAKE ON LAN/ PXE |
Yes (WOL /PXE) |
| POWER STATE |
S3, S4, S5 |
| GRAPHICS |
| GRAPHICS CHIPSET |
Intel® HD Graphics |
| GRAPHICS MULTI DISPLAY |
3 independent display |
| VGA |
Up to 1920 x 1200 @60Hz |
| DVI |
— |
| HDMI |
Up to 3840 x 2160 @ 30Hz |
| DISPLAYPORT |
— |
| LVDS |
Up to 1920 x 1080 @60Hz, Daul Channel 18/24 bit (via CH7511) (colay with eDP) |
| EDP |
Up to 4096 x 2160 @60Hz |
| BACKLIGHT CONTROL |
Voltage / PWM |
| ENVIRONMENTAL & POWER & ME |
| BATTERY |
Lithium battery |
| POWER REQUIREMENT |
12V~24V wide-range voltage input back panel DC jack x 1;
4-pin ATX 12V Power connector x 1 |
| OPERATING TEMPERATURE |
32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE |
-40°F ~ 185°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY |
0% ~ 90% RH, non-condensing |
| CERTIFICATION |
CE & FCC Class A |

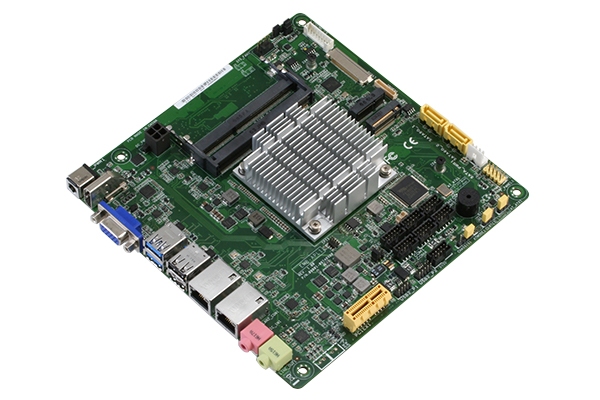

| FORM FACTOR |
Mini-ITX 6.7" x 6.7"(170mm x 170mm) |
| WEIGHT |
1.1 lb (0.5 Kg) |
| MTBF (HOURS) |
— |
| REAR I/O PORTS |
| USB |
USB 3.0 x 2, USB 2.0 x 2 |
| DISPLAY I/O |
HDMI x 1, VGA x 1 |
| AUDIO I/O |
Mic-in, Line-out |
| LAN I/O |
RJ-45 x 2 |
| SERIAL PORT |
— |
| PS/2 PORT |
— |
| OTHERS |
DC power jack x 1 |
| INTERNAL I/O CONNECTORS |
| STORAGE |
SATA 6.0Gb/s x 2(1 colay with M.2), M.2 M key (22 x 42mm) x 1 |
| USB |
USB 2.0 headers support additional 3 USB ports (2*5PIN, p=2.00mm) x 2 |
| DISPLAY I/O |
40-pin LVDS/eDP connector x 1(default eDP) |
| AUDIO I/O |
— |
| SERIAL PORT |
RS-232/422/485 x 1, RS-232 x 5 |
| PS/2 PORT |
PS/2 header x 1 |
| PARALLEL PORT |
— |
| DIO |
8-bit x 1 (In/Out programmable) |
| FAN |
4-pin Chassis Fan x 1 |
| POWER |
Front panel header x 1, Clear CMOS jumper x 1, AT/ATX mode select jumper
(optional) x 1, SATA power connector x 1, M.2 E key (22 x 30mm) for PCIe x 1 |
| OTHERS |
— |
| OS |
| OS SUPPORT |
Windows 10 64bit, Linux Fedora |
