| SYSTEM |
| PROCESSOR |
Intel®4th Gen. Core™ i Series 22nm LGA1150 socket Processor, Max. 65W TDPs |
| CHIPSET |
Intel® H81 |
| MEMORY |
DDR3 1333/1600 MHz SODIMM x 2, Up to 16GB, Non-ECC, Dual-channel memory architecture(flat type) |
| GRAPHICS |
Intel® HD Graphics |
| I/O CHIPSET |
NCT6791D, NCT5104D |
| ETHERNET |
Realtek PCIe Gb LAN 8111F x 2 |
| AUDIO |
Realtek® ALC887 |
| TPM |
Infineon SLB9635 TT 1.2 |
| EXPANSION SLOT |
PCIe [x4] x 1, Full-size Mini-Card (PCIe+USB default) (mSATA optional) x 1, |
| BIOS |
64 M bit Flash ROM, AMI BIOS |
| H/W MONITOR |
Temperature Monitor on CPU/Chassis, Voltage Monitor on Vcore/5V/3.3V/12V, Fan Monitor on CPU/Chassis |
| WATCHDOG TIMER |
1~255 step by software program |
| SMART FAN CONTROL |
CPU Fan/ Chassis Fan |
| WAKE ON LAN/ PXE |
Yes (WOL/PXE) |
| POWER STATE |
S3, S4, S5 |
| GRAPHICS |
| GRAPHICS CHIPSET |
Intel® HD Graphics |
| GRAPHICS MULTI DISPLAY |
VGA + LVDS, VGA + DVI-I, LVDS + DVI-I |
| VGA |
Up to 1920 x 1200 @60 Hz |
| DVI |
Up to 1920 x 1200 @60 Hz |
| HDMI |
— |
| DISPLAYPORT |
— |
| LVDS |
Up to 1920 x 1200 @60 Hz, Dual Channel 18/24-bit Support LVDS |
| EDP |
— |
| BACKLIGHT CONTROL |
Voltage / PWM |
| ENVIRONMENTAL & POWER & ME |
| BATTERY |
Lithium battery |
| POWER REQUIREMENT |
24pin ATX connector x 1, 4pin ATX 12V Power connector x 1 |
| OPERATING TEMPERATURE |
32°F ~140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE |
-40°F ~185°F (-40°C ~85°C) |
| OPERATING HUMIDITY |
0% ~ 90%RH, non-condensing |
| CERTIFICATION |
CE & FCC |
| FORM FACTOR |

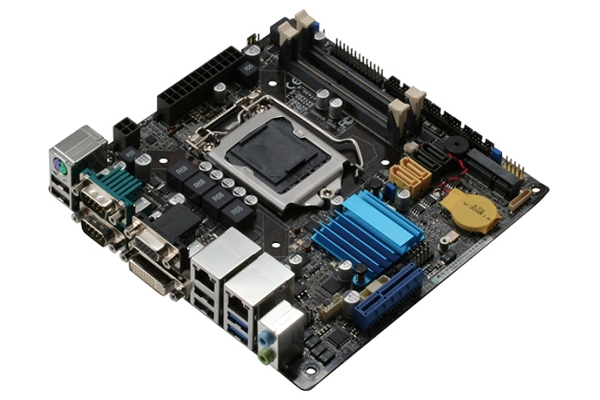

Mini-ITX, 6.7” x 6.7” (170mm x 170mm) |
| WEIGHT |
1.1 lb (0.5 Kg) |
| MTBF (HOURS) |
288500 |
| REAR I/O PORTS |
| USB |
USB 3.0 x 2, USB 2.0 x 4 |
| DISPLAY I/O |
VGA x 1, DVI-I x 1 |
| AUDIO I/O |
Mic-in x 1, Line-out x 1 |
| LAN I/O |
LAN (RJ-45) port x 2 |
| SERIAL PORT |
COM (RS-232/422/485) x 1, COM (RS-232) x 2 |
| PS/2 PORT |
— |
| OTHERS |
— |
| INTERNAL I/O CONNECTORS |
| STORAGE |
SATA3 (6.0Gb/s) x 2, SATA2 (3.0Gb/s) x 2 (1 colay with mainboard), Full/Half Size Mini-Card slot x 1 |
| USB |
USB 2.0 connectors support additional 2 USB ports (2.54mm) x 1, USB 2.0 connectors support additional 1 USB ports (2.00mm) x 1 |
| DISPLAY I/O |
LVDS connector x 1, LCD Inverter connector x 1 |
| AUDIO I/O |
AAFP x 1 |
| SERIAL PORT |
Box header for COM (RS-232) x 4 |
| PS/2 PORT |
— |
| PARALLEL PORT |
SPP/EPP/ECP Mode |
| DIO |
Digital I/O header x 1 |
| FAN |
CPU Fan connector x 1, Chassis Fan connector x 1 |
| POWER |
12V AUX Power Connector x 1, 24-pin EATX Power connector x 1 |
| OTHERS |
Front Panel connector x 1 |
| OS |
| OS SUPPORT |
Windows® 7 32/64-bit, Windows® 8 32/64-bit, Linux
Fedora |
