Epsilon-24000

Overview

Managed 26-Port Gigabit Ethernet Switch with wide voltage input and serial management port

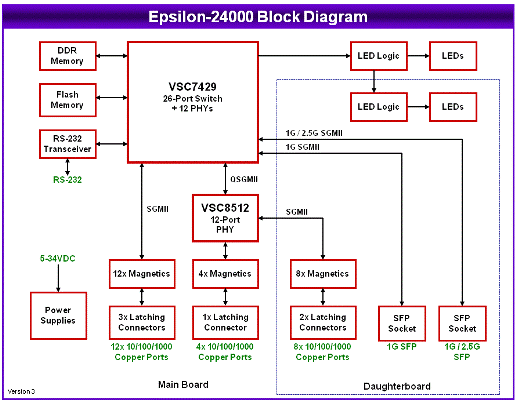

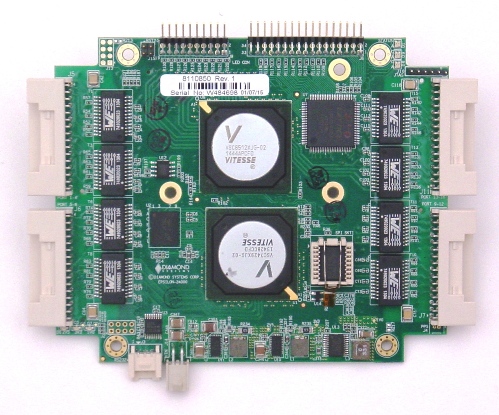

Epsilon-24000 is a managed Layer 2+ Ethernet switch module offering up to 24 10/100/1000Mbps copper twisted pair ports and 2 small form factor pluggable (SFP) sockets in the compact PC/104 form factor. Epsilon-24000 is designed for rugged applications including industrial, on-vehicle and military.

Epsilon-24000 is a standalone switch that does not require any host computer interface. All switch functions are managed by a microprocessor embedded directly into the switch. The processor is accessed via an in-band web interface over one of the Ethernet ports or via an out-of-band command-line interface over an RS-232 serial port. The integrated web interface provides an intuitive GUI for use in configuring and managing all switch functionality. On-board memory holds dual application images, boot code, MAC addresses, and other parameters, and can also be used for program execution.

Epsilon-24000 includes a dual SFP socket for interfacing to 1G fiber Ethernet networks. One port can operate at enhanced 2.5G speed to support efficient stacking of two switches together for a combined total of 50 ports.

Epsilon-24000's advanced Ethernet switch board includes two innovative features that enable automatic power savings. The switch can detect unused Ethernet ports on network devices and power them down or place them in stand-by mode. Additionally, the switch actively adjusts the power level needed based on cable length, saving energy on links shorter than the 100m maximum specified length. Input power is provided through the built-in, wide-range +5 to +34VDC power supply, enabling operation using industrial power sources.

Epsilon-24000 was designed for use in vehicle and harsh environment applications. All I/O connectors are latching, providing enhanced reliability over the RJ-45 connectors used in commercial Ethernet switches. A 50% thicker PCB provides better protection against vibration in vehicle environments. The wide range 5-34V input power supply is compatible with all common vehicle and industrial power sources. The -40ºC to +85ºC operating range makes Epsilon-24000 suitable for use in outdoor and vehicle applications.

Epsilon-24000 comes loaded with all required firmware, enabling its immediate operation without any development effort. The included web interface provides an intuitive GUI for use in configuring and managing switch functionality. The ACC-EPS24000-DB product upgrades the EPS-24016-104 model to the EPS-24026-104 model, adding 8 Gigabit Ethernet ports and 2 SFP sockets.

Development Kit

Two Development Kits are available for the Epsilon-24000. The DK-EPS24026 Development Kit contains an EPS-24026-104 26-port Gigabit Ethernet switch, cable kit and LED accessory board. The DK-EPS24016 Development Kit contains an EPS-24016-104 16-port Gigabit Ethernet switch, cable kit and LED accessory board.

Cable Kit

The Epsilon-12G2 cable kit includes cables for Epsilon's input and output.
