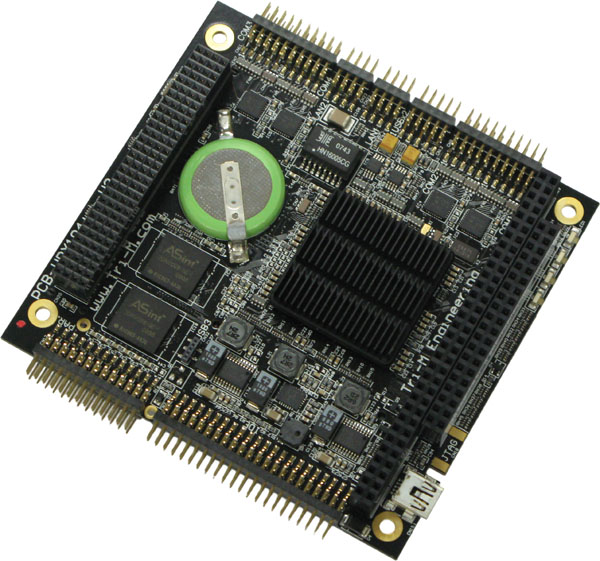

VDX104+: PC104-Plus CPU Board

VDX104 and VDX104+

800MHz Vortex86DX SoC 512MB onboard DDR2 RAM 4 serial, 2 USB 2.0 Dual 10/100 LAN

Manufacturer: Tri-M Technologies

Description

800MHz Vortex86DX PC104-Plus Module with Dual LAN

The VDX104+ is a rugged PC104-Plus compliant system controller measuring just 3.55 inches by 3.775 inches. With an 800 MHz processor, the VDX104+ offers the quickest route of integrating a full x86 AT-compatible computer into your embedded control application using the PC/104+ form factor. In addition, the built-in peripherals such as dual ethernet minimize the number of additional modules required. By combining the system hardware with extended temperature operation and onboard soldered 512 MB SDRAM, I/O, software (integrated OS image) and solid-state mass storage, the VDX104+ lowers your exposure to possible development risks, costs and significantly reduces your time-to-market.

The VDX104+'s full compatibility with the popular PC/104+ embedded expansion bus allows you to easily integrate the widest selection of low-cost hardware peripherals. The numerous features provide an ideal price/performance solution.

Advantages

  • Full x86 AT-compatible computer
  • Low power
  • Extended temperature operation
  • Rugged design
  • PC104-Plus compliant

System

  • CPU DM&P SoC CPU Vortex86DX-800MHz
  • BIOS AMI BIOS
  • Cache 16K I-Cache, 16K D-Cache
  • System Chipset Vortex86DX
  • I/O Chipset Vortex86DX
  • Ethernet Chipset Vortex86DX
    SMSC USB controller LAN9500A
  • Ethernet Interface 2x 10/100Base-T
  • Expansion PC/104plus standard compliant
  • Speaker Out Onboard speaker
  • Real Time Clock RTC with lithium battery backup
  • Watchdog Timer Yes

Interface

  • Serial Port 4x 16550-compatible serial ports, RS-232
  • LAN Port 2x 10/100 Ethernet
  • EIDE 2x EIDE (Ultra DMA 100)
  • Parallel Port 1x bi-directional AT-compatible printer port
  • USB Port 2x USB 2.0
  • K/B & Mouse PS/2
  • GPIO 1x 8-bit GPIO port
  • Redundancy 1x Redundancy port
  • SPI 1x External SPI port

Memory & Storage

  • Memory Onboard 512MB DDR2 RAM
  • Storage 8MB onboard SPI flash (floppy emulation), Type I CompactFlash™ socket, microSD socket

Software Support

  • Operating System (O/S) AMI PC BIOS - 100% x86 compatible, DOS, MSDOS, DRDOS, LINUX, Windows™CE

Electrical Specifications

  • Power Input Single 5V DC operation
  • Power Consumption 2.5 watt, (+5V@500mA)

Environment & Mechanical

  • Operating Temperature -40° to 85°C
  • Storage Temperature -50° to 125°C
  • Relative Humidity 5 to 90% @ 40ºC, relative humidity, non-condensing
  • Dimension (LxWxH) 3.55” x 3.775” x 0.9”
  • Weight 53g (incl. battery)

Warranty

  • 1 year limited warranty
File Type Description
vdx104_spec.pdf Spec Sheet VDX104-1E Spec Sheet
vdx104plus_spec.pdf Spec Sheet VDX104+ Spec Sheet
vdx104_man.pdf User Guide VDX104+ Manual
VDX104-1E-PCN-20140806.pdf Product Change Notice VDX104-1E change notice
VDX104-2E-PCN-20150123.pdf Product Change Notice VDX104+2E change notice

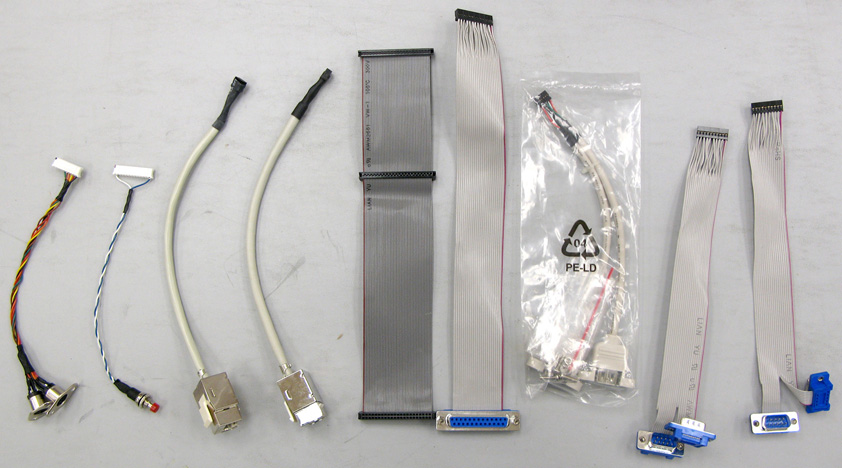

Cableset Image Information CABLESET004 - Cable set for VSX104+ and VDX104(+)

VDX104 development kits include:

  • VDX104+2E-SF8-USB-UD PC/104 CPU module
  • VSX2812 PC/104+ VGA/LCD/DVI module
  • HE104-512-16 PC/104 power supply
  • CompactFlash card
  • Extract104 extraction tool

ICOP-2811 PC/104 VGA video card is available for purchase separately

Part Number Description
VDX104-1E PC/104, 800Mhz Vortex86DX, 512Mb, Single Ethernet
VDX104+2E The VDX104-1E with the Plus bus and second Ethernet added
VDX104+KIT
Includes a VDX104+2E-SF8-USB-UD, VSX2812, HE104-512-16, ICOP-2811 PC/104 VGA video card
Accessories and Options
CABLESET004 Cable set for VSX104+, VDX104, VDX104+

VDX104 ordering format:
VDX104[+/-][2E][-SFx][-USD][- UD]
Where:

  • [+/-] , For PC/104 and PCI-104 bus specify “+”. For PC/104 bus only specify “-”.
  • [2E], For 2nd LAN port specify “2E”.
  • [-SFx], for 8MB SPI flash specify “-SF8”. For for 16MB SPI flash specify “-SF16”.
  • [-USD], for microSD support specify “-USD”.
  • [-UD], for USB Device port specify “-UD”.
