ACP-1073 7 Inch Multi-Touch Panel PC

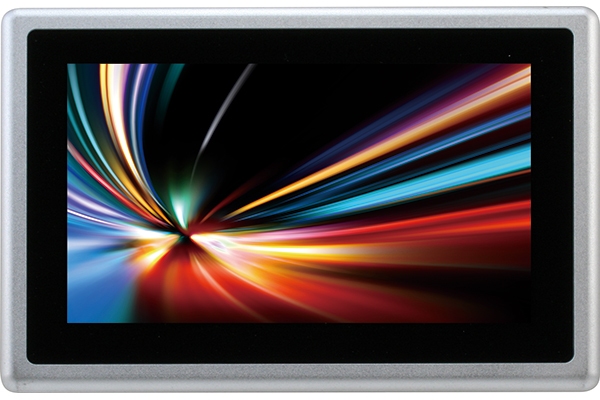

ACP-1073: 7 Inch Multi-Touch Panel PC

7” Ultra-Slim Fanless Multi-Touch Panel PC with Intel® Atom™ N2600, 2 GB RAM

Description

The ACP-1073 is a Multi-Touch Industrial Panel PC with onboard Intel® Atom™ N2600 processor-based computer. It is a PC-based system with 7” true color TFT LCD display, integrated multimedia functions make them the perfect platforms to build comprehensive lifestyle computing applications.

The ACP-1073 includes all the features of a powerful computer into a slim and attractive mechanism design. The ACP-1073 adopts 250 nits TFT display with 1024 x 600 resolution. This model supports two-point Multi-Touch function (Window 7 : Two finger, Win XP : Single finger, Window embedded version : Single Finger.) and full flat design is easy to clean. Moreover, its front bezel is IP65/NEMA4 for auxiliary water-proof protection. In addition, the ACP-1073 deploys 7H hardness Anti-Scratch Surface to avoid accidental damage.

The ACP-1073 supports one mSATA Hard Disk Drive for the storage function, and has optional wireless function with WiFi module by USB interface. Moreover, this model has one RS-232 and two RS-232/422/485 RJ-45 connectors, four USB2.0 ports, and one Mini HDMI. It is ideal for versatile applications.

Applications

  • Multi-touch
  • Infotainment
  • Retailer

    • Features

  • 7" WSVGA (1024 x 600) Color TFT LCD Display
  • Intel® Atom™ N2600 Processor
  • Wide Flatscreen with Projected Capacitive Multi-Touch (2-point)
  • 7H Anti-Scratch Surface
  • Thickness: 13mm LCD + Touch, and 20mm Chassis
  • Aluminum Design
  • IP65 Compliant
  • Fanless Operation
  • VESA 75/ stand Support

    • SYSTEM
    PROCESSOR Intel® Atom™ N2600 1.6 GHz processor
    SYSTEM MEMORY 204-pin DDR3 SODIMM up to 2 GB, default 2 GB
    LCD/CRT CONTROLLER Intel® NM10 integrated graphics
    ETHERNET 10/100/1000Base-TX, RJ-45 x 1
    I/O PORT RJ-48 type RS-232/422/485 x 2
    RJ-48 type RS-232 x 1
    USB 2.0 x 4
    Mini HDMI x 1
    RJ-45 type LAN x 1
    Lockable power input connector
    power switch x 1
    STORAGE DISK DRIVE Half-size mSATA storage (installation by AAEON recommeded)
    EXPANSION SLOT --
    OS SUPPORT Windows® XP 32-bit, Windows® 7 32-bit, Linux kernel 2.6.3 or higher
    MECHANICAL
    CONSTRUCTION IP65/NEMA 4 aluminum front bezel, aluminum back chassis
    MOUNTING VESA 75 stand/ Panel mount
    DIMENSION 7.96” x 5.28” x 1.46” (202.19mm x 134.18mm x 37.2mm)
    CARTON DIMENSION 13.58” x 7.87” x 9.65” (345mm x 200mm x 245mm)
    GROSS WEIGHT 5.5 lb (2.5 kg)
    NET WEIGHT 2.42 lb (1.1kg)
    ENVIRONMENTAL
    OPERATING TEMPERATURE 32°F ~ 113°F (0°C ~ 45°C) without airflow
    32°F ~ 122°F (0°C ~ 50°C) with airflow
    STORAGE TEMPERATURE -4°F ~ 158°F (-20°C ~ 70°C)
    STORAGE HUMIDITY 95% @40°C, non-condensing
    VIBRATION 1 Grms/ 5~ 500Hz/ operation – with HDD
    SHOCK 15 G peak acceleration (11 msec. duration) – with HDD
    EMC CE/FCC class A
    POWER SUPPLY
    DC INPUT DC12V, with lockable power adapter
    LCD
    DISPLAY TYPE 7" TFT-LCD, LED
    MAX. RESOLUTION 1024 x 600
    MAX. COLORS 26M colors (6/8-bit for R,G,B)
    LUMINANCE 250 cd/m²
    VIEWING ANGLE 150°(H), 145°(V)
    BACK LIGHT LED
    BACK LIGHT MTBF (HOURS) 15000
    TOUCHSCREEN
    TYPE Projected capacitive multi-touch (2-point)
    LIGHT TRANSMISSION 90%

    PART NUMBERACP-1073HTT-A1-1012
    DISPLAY TYPE 7" TFT-LCD
    MAX. RESOLUTION 1024 x 600
    LUMINANCE 250 cd/m2
    BACKLIGHT MTBF 20,000
    CPU Intel® Atom™ N2600, 1.6 GHz
    LAN 1
    USB 2.0 4
    RS- 232 1
    RS- 232/422/485 2
    STORAGE Half size mSATA HDD
    RAM 2 GB
    DISPLAY Mini HDMI x 1
    EXPANSION —
    MOUNTING VESA 75
    stand
    POWER DC 12V
    TEMP. 0°C ~ 45°C
    (w/o airflow)
    TOUCH Projective capacitive multi-touch (2-point)

    Packing List



  • 1255300607 Power Adapter, DC12V, 60W
  • 9741107300 Panel Mount Kit
  • 1700090156 RJ-45 to COM Cable x 3
  • M041073000 VESA Mount Kit
  • VESA Screws
  • Product DVD
  • ACP-1073

    •

    Optional Accessories

    Part Number Description
    1702031802 Power Cord (US Type)
    1702031803 Power Cord (European Type)
    M041073020 Stand Kit
