VGLCDLA30RPDC: Variable Gain GPS Amplifier

Overview

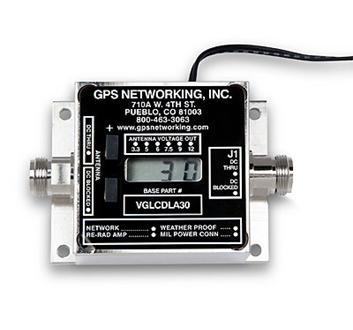

VGLCDLA30RPDC Variable Gain GPS Amplifier

The VGLCDLA30RPDC is a GPS Variable Gain Line Amplifier featuring a variable gain range from 0 to 30dB with an LCD display and push button controls in 1dB increments. The frequency response covers the GPS L1/L2/L5, Galileo and GLONASS bands with excellent flatness throughout the attenuation range. The easy to read LCD display allows users to read the exact gain at any time and easily adjust the gain in 1dB increments to ensure precise control of the signal strength at all times. In the normal configuration, the RF output passes DC from the connected GPS receiver through the amplifier to the antenna, allowing the GPS receiver to power both the antenna and the amplifier.

Features

• Passes GPS L1, L2, L5, GLONASS and Galileo frequency bands (entire L-band)
• Extremely Flat Group Delay
  Less than 1ns Variation
• Variable Gain Amplifier
  0 ≤ Gain ≤ 30dB
• Excellent SWR Throughout Dynamic Range
  SWR ≤ 1.8:1 Max, SWR ≤ 1.5:1 Typical
• Very Low Noise Figure
  Typical 1.7dB
• Excellent 1dB compression point,
  Minimum 5dBm
• Excellent 3rd Order Intercept
  13dBm
• Push Button Controls
  1dB Increments
• Rohs Compliant
