CPDC4X1 GNSS Combiner

Overview

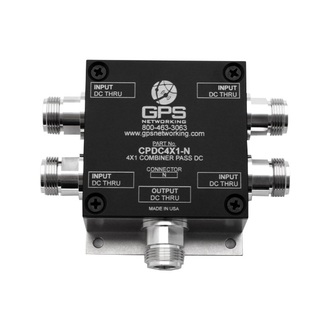

CPDC4X1 GNSS Combiner

The CPDC4X1 GPS Combiner (GNSS Combiner) is a four input, one output device. The frequency response covers the entire L-band (all GNSS Frequencies) with excellent flatness. In the standard configuration, DC is passed from a connected GPS device through the combiner to both inputs (antenna ports). The connected GPS device or receiver will continue to maintain a GPS lock in the event of an antenna failure.

Features

• Excellent Flatness
• Extremely Flat Group Delay
  Less that 1ns variation
• Low Insertion Loss
• Passes all GNSS Frequencies (Entire L-band)
• Provides Antenna redundancy
  Allows receivers to function with a failed antenna
• Phase Matched Outputs
• Special Configurations Available By Request
