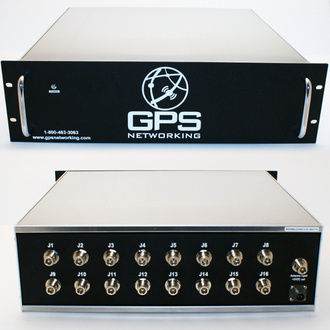

RMALDCBS1X16 Rack Mount Amplified Splitter

Overview

Rugged 1x16 Amplified Rack Mount Splitter

The RMALDCBS1X16 Rack Mount Amplified 1X16 GPS Splitter (GNSS Splitter) is a one input,sixteen output device. The frequency response covers the entire L-band (all GPS/GNSS frequencies) with excellent gain flatness. In the normal configuration, the splitter is powered by an external DC source that supplies power to the splitter’s internal amplifier and outdoor antenna. The outputs are DC blocked and loaded with 200Ω resistors to simulate the antenna current draw to prevent false antenna alarm faults. Product is ideally suited for timing and testing applications where the GPS/GNSS signal is required by as many as 16 devices simultaneously.

Features

• Durable Rugged Standard 3U Chassis
• Extremely Flat Group Delay
  Less that 1ns variation
• Amplified 14dB gain typical
  Custom gain available by request
• Excellent Gain Flatness
  |J1 – J16| < 1.5 dB
• High isolation option
  >35dB of isolation between adjacent output ports
• Phase matched outputs
  Phase (J1 - J16) <1.0°
