M-Max 700 PR mk.2
High performance industrial computer, -40 to +55°C MIL-STD-810G
Description
Overview

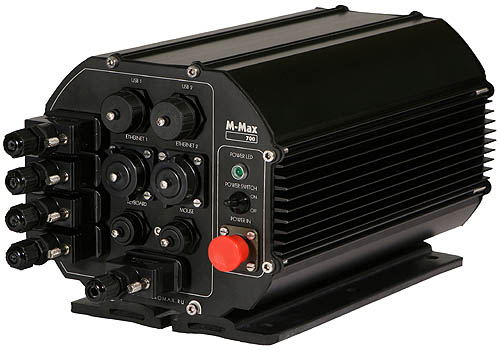

M-Max 700 PR mk.2
M-Max 700 PR mk.2 is a rugged high performance industrial computer for demanding applications. The standard version of this full function computer, designed for use in harsh environments (extreme temperatures, dust, humidity and vibration) is IP65 rated. The system is based on Intel's Core Duo L2400 CPU and 945GSE/ICH7 chipset. Intel's integrated graphics controller GMA950 provides 2D and 3D capabilities and hardware video decoding.
I/O connectivity includes 2 LAN fast Ethernet ports, 4 serial ports, 2 USB 2.0 ports and PS/2 ports for keyboard and mouse. Data storage options are vibration proof HDD or industrial SSD. The power consumption in the basic configuration is 28W maximum.
The rugged aluminum enclosure with dual shock and vibration system and passive cooling system provides highly reliable silent operation in harsh environments and the extended temperature range of -40 to +55 °C.
These features allow the M-Max 700 PR mk2 to tackle the most demanding tasks.
Applications:
Road, Rail, Air and Marine Transport
- Mining
- Agriculture
- Processing Facilities
Specifications
Technical specifications: |
|
| Enclosure: | Aluminum enclosure Dual damping system Passive cooling system (no fans) |
| Connectors: | 1x MS3102E (Power) 4x DB-9 (Serial) 2x USB Type A 1x DB-15HD (Analog display) 2x MiniDIN-6 (Keyboard and Mouse) 2x RJ-45 (Ethernet) All connectors are IP66 protected |
| Includes: | End caps Rugged cable connectors |
| Indication: | Power ON indicator |
| Controls: | Power ON button |
| Expandability: | Space for two PC/104+ modules |
| CPU: | Intel Core 2 Duo L2400 (1.66GHz, 2MB L2 cache, FSB 667MHz) |
| Chipset: | Intel 945GSE/ICH7 |
| RAM: | 1..2GB DDR2 667 MHz SODIMM |
| Data storage: | SSD: 4…16GB CF or 32…256GB SATA |
| Video: | Integrated controller: Intel GMA 950, 3D and 2D engines, hardware video decoding Up to 224MB dedicated memory Supports analog displays with resolution up to 2048x1536 @ 75Hz |
| LAN: | 2x 10/100/1000 Base-T (Intel 82551) |
| Serial ports: | 4x, 1 port RS232/422/485 |
| USB: | 2x USB 2.0 Option of up to 4 ports |
| Mouse and keyboard: | PS/2 |
| BIOS: | Phoenix-Award |
| Special features: | Watchdog timer |
| Power: | +9…+40 VDC AC adapter ~100…240V (optional) |
| Power Consumption: | 28W |
| Mechanical(WxHxL): | 180 x 162 x 282 mm (without end caps and connectors) |
| Environmental and physical specifications: |
|
| Dust/Moisture: | IP65 |
| Operating Temperature: | -40 to +55 °C Complies with MIL-STD-810G (High temp. method 501.5, A1; Low temp. method 502.5, C1, Expandable to C2/C3) |
| Humidity: | Operating: 5 to 95% @ +25 °C, non-condensing |
| Vibration: | Operating acceleration amplitude up to 6g (5-500Hz) Complies with MIL-STD-810G (Method 514.6 for Ground vehicles) |
| Shock: | Maximum peak shock acceleration up to 40g (15ms) Complies with MIL-STD-810G (Method 516.6 for Ground equipment) |
| Altitude: | Operating: up to 3000 m |
