Rugged Intelligent Locomotive Gateway

Gateway CAN MVB2

Rugged Intelligent Locomotive Gateway, 4x CAN, isolated serial, wide input voltage, IP65, -40 to +70°C

Description

Gateway-CAN-MVB2

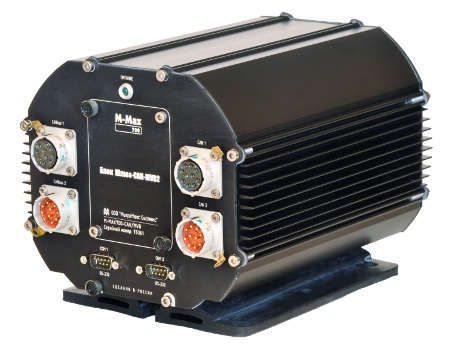

The Gateway-CAN-MVB2 rugged computer is used to decode signals between Russian Rail Road continuous Automatic Train Control (ATC) systems with CAN interfaces such as CLUB-U, BLOK or similar devices and onboard systems utilizing Multifunction Vehicle Bus (MVB). This fanless intelligent Gateway is designed to be used in onboard safety systems installed in locomotives, high speed trains such as SAPSAN (Velaro RUS), Lastochka (Desiro RUS) and others. The system can be easily adapted to the technical requirements of different railroad vehicles.

This IP65 rated system is housed in a rugged aluminum enclosure with dual shock and vibration protection. It is based on proven PC/104 technology, and its compact design and low power makes it the ideal solution for on-board smart interface conversion.

Features

  • Two redundant MVB channels, four isolated CAN interfaces
  • Two isolated Serial interfaces (RS232/422/485)
  • IP65 dust and moisture protection
  • Operates from -40 to +70 °C
    • Technical specifications:
    CPU: Intel 1.66 GHz Atom Processor N450 (512 KB L2 Cache, 1066 MHz FSB)
    Chipset: ICH8-M
    RAM: 512 MB DDR2 (soldered on board)
    Data storage: SSD 4 - 16 GB CF
    Connectors: 2x DB-9F (MVB)
    4x SNC23 (CAN & Power)
    2x DB-9M (Serial)
    Multifunction Vehicle Bus ports: 2x redundant MVB channels (1.5 Mbaud, Isolation by transformer)
    Controller Area Network ports: 2x Isolated CAN interfaces ISO 11898 compliant, 1Mbps
    (Optional: 4x CAN interfaces)
    Supports CAN 2.0 A and CAN 2.0 B (active)
    High-performance microcontroller on board
    Serial ports: 2x Isolated RS-232/422/485, up to 460.8 Kbps
    Software: Linux, Windows or QNX w/preloaded software
    Special features: Watchdog timer
    Power: +18 to +75 V DC (isolated)
    The system is immune to surge per EN-61000-4-5 (± 4 kV, Criteria A)
    Power Consumption: 16 W
    Indication: Power ON indicator
    Enclosure: Aluminum enclosure
    Dual damping system
    Passive cooling system (no fans)
    Mechanical (W x H x L): 180 x 165 x 253 mm
    (without end caps and connectors)
    Environmental and physical specifications:
    Dust/Moisture: IP65
    Operating Temperature: -40 to +70 °C
    Humidity: Operating: 5 to 95 % at +25 °C, non-condensing
    Vibration: Operating acceleration amplitude up to 2g (5-150 Hz)
    Shock: Maximum peak shock acceleration up to 6g (60 ms)
    Altitude: Operating: up to 3000 m
