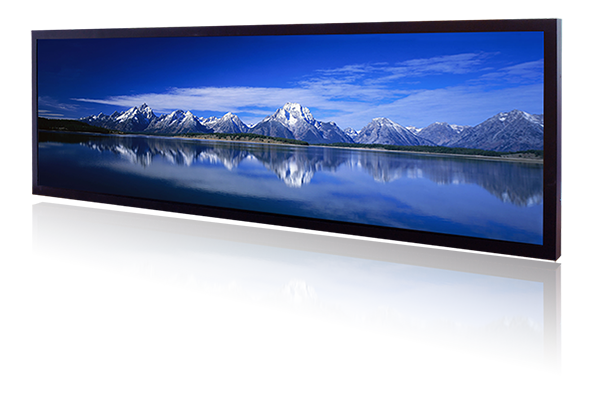

Spanpixel 0822-E: 8 Inch Stretched LCD Screen

Aspect ratio 16:5, 1024x324 resolution, 250 nits, low power

Manufacturer:

Description

Overview

8 Inch Stretched LCD Display

SSF/SSH0822 is an innovative ultra-wide, sunlight readable, LED backlight LCD display. It provides LCD panel with specific ratios for digital signage, public transportation, exhibition hall, department store, vending machine, POS and industrial applications. It is high-quality full color video with energy-efficient.

Advantages

  • 8" resizing LCD
  • Stretched display (aspect ratio of 16:5)
  • Brightness of 250 nits
  • Resolutions: 1024 x 324
  • Low power consumption
  • BL MTBF: 70,000 hours

    • Specifications

    Model SSF0822-E SSH0822-E

    Description 8" Resizing LCD, 250 nits LED backlight, 1024x324 8" Resizing LCD, 250 nits LED backlight, 1024x324
    Screen size 8" 8"
    Display area (mm) 195.1(H) x 61.2(V) 195.1(H) x 61.2(V)
    Brightness 250 cd/m² 250 cd/m²
    Resolution 1024x324 1024x324
    Aspect ratio 16:05 16:05
    Contrast ratio 500:1 500:1
    Pixel pitch (mm) 0.1905 (H) x 0.189 (V) 0.1905 (H) x 0.189 (V)
    Pixel per inch (PPI) 133 133
    Viewing angle 140° (H), 110° (V) 140° (H), 110° (V)
    Color saturation (NTSC) 48% 48%
    Display colors 262K 262K
    Response time (Typical) 25ms 25ms
    Video interface LVDS VGA, DVI-D
    Input power   DC 12V
    Power consumption 3w 5.8w
    Dimensions (mm) 215x79.2x7.5 215x79.2x7.5
    Bezel size (U/B/L/R) 7.4/7.25/10.99/8.91 7.4/7.25/10.99/8.91
    Weight (Net) 0.17kg 0.27kg
    Mounting
    OSD key   4 keys (Power switch, menu, +, -)
    OSD control   Brightness, color, contrast, H/V position… etc
    Operating temperature 0°C ~ +50°C 0°C ~ +50°C
    Storage temperature -20°C ~ +60°C -20°C ~ +60°C
    Product approval

    Downloads

    File Type Description
    DS_SSF_SSH 0822-ENN-G01_V1_20150804.pdf Spec Sheet Spanpixel 0822-E Spec Sheet

    Ordering Info

    Part Number Description
    SSF0822-ENN-A01 8",250nits,1024*324.V01(10 in 1)
    SSH0822-ENN-I01

    8",250nits,1024*324,AD6038GM.V1(10 in 1)
    SSH0822-ENN-G01

    8",250nits,1024*324,AD2662GHM.DC 12V,V01(10 in 1)
    Optional Accessories
    840612051210 ADAPTER,AC/DC,12V/5.4A,65W,Atech OEM A065112-TDx,4P SLIDING CAP,P
    810618301010 CABLE.POWER.AC.1830mm USA type
    810618301090 CABLE,POWER,AC,1830mm Europe type
    810618301050 CABLE.POWER.AC.1830mm UK type
    810618301170 CABLE.POWER,AC,1830mm Australia type
    810618301030 CABLE.POWER.AC.1830mm Japan type
