spanpixel 1505-e ultra wide lcd

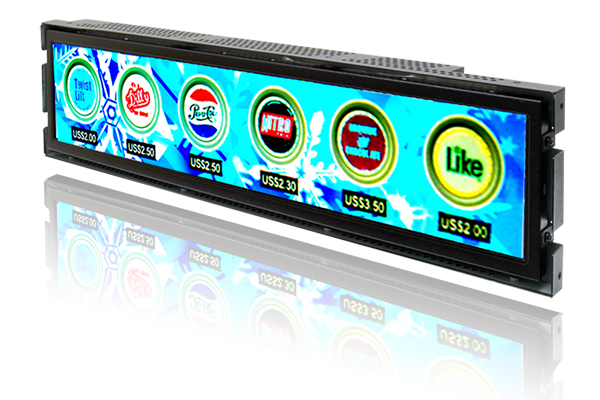

Spanpixel 1505-E: Ultra-Wide Sunlight Readable Display

Aspect ratio 16:3, 1280x242 resolution, 1,000 nits, LED backlight, sunlight readable

Description

Overview

16:3 Ultra-Wide Sunlight Readable Display

SSD/SSF/SSH1505 V2 is an innovative 15" ultra-wide, sunlight readable, LED backlight LCD display.  It provides an LCD panel with specific ratios for vehicle dashboards, public transportation, department store, vending machine and industrial applications.  Incorporating A.D. control board and backlight design, it is a high brightness and sunlight readable panel, and can display high-quality video with energy-efficiency.

Advantages

  • 15 inch resizing LCD
  • Stretched display (aspect ratio of 16:3)
  • Sunlight readable LCD, high brightness (1,000 nits)
  • Resolution: 1280 x 242
  • Low power consumption
  • Slim bezel
  • BL MTBF: 70,000 hours

    • Specifications

    Model SSF1505-E SSH1505-E SSD1505-E

    Description 15" Resizing LCD, 1000 nits LED backlight, 1280x242 15" Resizing LCD, 1000 nits LED backlight, 1280x242 15" Resizing LCD, 1000 nits LED backlight, 1280x242
    Screen size 15" 15" 15"
    Display area (mm) 376.3(H) x 71.2(V) 376.3(H) x 71.2(V) 376.3(H) x 71.2(V)
    Brightness 1000 cd/m² 1000 cd/m² 1000 cd/m²
    Resolution 1280x242 1280x242 1280x242
    Aspect ratio 16:3 16:3 16:3
    Contrast ratio 1000:1 1000:1 1000:1
    Pixel pitch (mm) 0.294 (H) x 0.294 (V) 0.294 (H) x 0.294 (V) 0.294 (H) x 0.294 (V)
    Pixel per inch (PPI) 86 86 86
    Viewing angle 170° (H), 160° (V) 170° (H), 160° (V) 170° (H), 160° (V)
    Color saturation (NTSC) 79% 79% 79%
    Display colors 16.7M 16.7M 16.7M
    Response time (Typical) 5ms 5ms 5ms
    Video interface LVDS VGA, DVI-D, HDMI VGA, DVI-D, HDMI
    Input power   DC 12V DC 12V
    Power consumption 9w 12w 12w
    Dimensions (mm) 396x94.2x12.2 396x94.2x12.2 408x106.2x37.8
    Bezel size (U/B/L/R) 9.6/9.6/7.9/7.9 9.6/9.6/7.9/7.9 16.6/16.5/14.85/14.85
    Weight (Net) 0.8kg 1kg 1.25kg
    Mounting     VESA 75x75
    OSD key   4 keys (Power switch, menu, +, -) 4 keys (Power switch, menu, +, -)
    OSD control   Brightness, color, contrast, H/V position… etc Brightness, color, contrast, H/V position… etc
    Operating temperature 0°C ~ +50°C 0°C ~ +50°C 0°C ~ +50°C
    Storage temperature -20°C ~ +60°C -20°C ~ +60°C -20°C ~ +60°C
    Product approval     CE, FCC

    Ordering Info

    Part Number Description
    SSF1505-ENN-A11 15",1000ints,1280*242,LID15.AD2662GDMR,O/B,DC 12V,V02
    SSH1505-ENN-G11 15",1000nits,1280*242,LID15.AD2662GDM,DC12V,V02
    SSH1505-ENN-G12 15",1000nits,1280*242,LID15.AD2662GHM,DC12V,V02
    SSD1505‐ENB‐S01 15",1000nits,1280*242,O/B.AD5621GS,V01
    Optional Accessories
    840612051210 ADAPTER,AC/DC,12V/5.4A,65W,Atech OEM A065112-TDx.4P SLIDING CAP,P
    810618301010 CABLE.POWER.AC.1830mm USA type
    810618301090 CABLE,POWER,AC,1830mm Europe type
    810618301050 CABLE.POWER.AC.1830mm UK type
    810618301170 CABLE.POWER,AC,1830mm Australia type
    810618301030 CABLE.POWER.AC.1830mm Japan type
