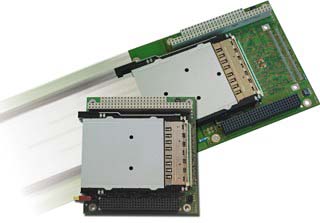

PC/104-Plus PCMCIA PC Card Adapters

The PCCARD is a PC/104-Plus interface adapter that provides the 8/16 bit PC Card™ and 32 bit CardBus™ functionality to your system.

PCCARD offers two independent PC Card™ standard slots that are backwards compatible with the PCMCIA standard. So PCCARD gives you access to the wide spread CardBus™, PC Card™ or PCMCIA Cards. Through the huge functionality these cards offer your system gain in a maximum flexibility. PCCARD is available as PC/104-Plus module or in a special MPL form factor used for the MPL packaged industrial PCs (PIP).

SPIDERLAN Advantages

  • Two PC Card Standard slots for dual type I/II or single type III card
  • 3.3V and 5V cards supported
  • 32 bit CardBus™ interface
  • 8/16 bit PC Card™ interface
  • PCMCIA PC Card™ compatible
  • Hot plug capable
  • PC/104 -Plus stack through module
  • Runs with 5V input power only
  • Fits in all PIP s

    • These features make the PCCARD to the ideal, industrial solution if you need to expand your system with a compact, reliable interface that gives you maximum flexibility. PCCARD connects your system to any available CardBus™, PC Card™ or PCMCIA-Card. This allows you for example to expand your system by removable memory and/or I/O cards (Flash Disks, Ethernet, FireWire, Modem, and more).

    PC Card Interface
    Card Types supported 3.3V and 5V, 8 bit or 16 bit PC-Cards
    32bit CardBus Cards
    Card Slots 2 independent, short circuit protected slots
    Controller TI PCI1520 CardBus Controller

    PC/104-Plus Interface
    Bus Interface 33MHz clock, 32Bit wide PC/104-Plus compliant
    PCI specification revision 2.2 compliant
    Interface Voltage 3.3V and 5V interface Version with internal 3.3V power supply available
    Interrupts Parallel PCI and ISA interrupts supported

    Physical/Power
    Power +5VDC and/or 3.3VDC +/-5% input over PCI connector
    5V only version available
    Programming voltage 12V Programming voltage supply over PC/104-Plus connector If required by the PC-Card
    Maximum Power consumption max. 1 Amp supply voltage
    max. 100 mAmp programming voltage
    Temperature Range -20°C up to +70°C Optional -40°C up to +85°C
    Humidity 5% - 95% non condensing Optional coating available

    Operating Systems
  • Microsoft Windows NT 4.0 (Using CardWizard from SystemSoft Inc. or CardWare from APSoft)
  • Microsoft Windows 98, ME, 2000 (Generic driver support)
  • Microsoft Windows XP (Native driver)
  • Microsoft Windows CE
  • Linux (Yenta socket driver)
    		•

    PCCARD Versions

    ReferenceDescription
    PCCARD-M MPL specific PC/104-Plus module for the PIP family, offering 2 PC Card slots (externally accessible)
    PCCARD-P PC/104-Plus form factor for all PC/104-Plus compatible PCs, offering 2 PC Card slots
    PCCARD-Cx Customer specific versions, please contact MPL for details.

    Extended Temperature Option

    ReferenceDescription
    XTEST-1 Extended temperature test, -40°C up to +85°C

    For deployment in harsh environments, the PCCard can be ordered in an extended temperature version. Every system needs to pass various tests in a climate chamber to prove that it will perform flawless over the temperature range indicated.
